0.6/1kV TPYCY, FA- TPYCY

Standard

JISC 3410-1999

IEC 60332-1

IEC 60332-3 Cat.A(for FA-type)

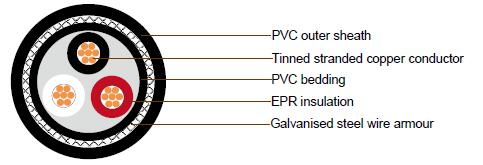

Cable Construction

0.6/1kV TPYCY, FA- TPYCY

Conductor

D(T,F,5,6,10)

Tinned annealed stranded copper, class 2 according to IEC 60228

Insulation

P

85°C EPR as per JIS C 3410



Cabling



Insulated conductors shall be cabled.
Flame retardant & non-hygroscopic fillers may be used

Bedding

Y

PVC as per JIS C 3410

Armor

C

Galvanized steel wire braid

Sheath

Y

PVC as per JIS C 3410



Core identification



2C Black, White -
3C / 2C+E Black, White, Red/ Black, White, G/Y
4C / 3C+E Black, White, Red, Green /Black, White, Red, G/Y 5C and over Black No. on white insulation /Black No. on white insulation, G/Y

Outer sheath
color



Black

Cable Parameter

0.6/1KV TPYCY, FA- TPYCY

Conductor



Thick. of insulation



Thick. of bedding



Dia. of steel wire



Thick. of covering

(FA-) TPYCY



Size



Const- ruction



O.D

Nom.
overall dia.



Tolerance



Cable Weight

mm²

No./mm

mm

mm

mm

mm

mm

mm

mm

kg/km

1.5

7/0.53

1.59

1.0

1.2

0.3

0.9

14.5

0.6

300

2.5

7/0.67

2.01

1.0

1.2

0.3

0.9

15.5

0.6

355

4

7/0.85

2.55

1.0

1.2

0.3

1.0

16.9

0.7

440

6

7/1.04

3.12

1.0

1.3

0.3

1.0

18.3

0.7

535

10

7/1.35

4.05

1.0

1.4

0.3

1.1

20.7

0.8

725

16

7/1.70

5.1

1.0

1.5

0.3

1.1

23.2

0.9

970

25

7/2.14

6.42

1.2

1.6

0.3

1.2

27.3

1.1

1390

35

7/2.52

7.56

1.2

1.7

0.3

1.3

30.2

1.2

1770

50

19/1.78

8.9

1.4

1.9

0.4

1.4

35.0

1.4

2420

70

19/2.14

10.7

1.6

2.1

0.4

1.5

41.0

1.6

3350

95

19/2.52

12.6

1.6

2.2

0.4

1.6

45.5

1.7

4320

120

37/2.03

14.2

1.6

2.4

0.4

1.7

49.6

1.8

5250

150

37/2.25

15.8

1.8

2.5

0.4

1.9

54.2

1.9

6340

185

37/2.52

17.6

2.0

2.7

0.4

2.0

59.7

2.0

7780

240

61/2.25

20.25

2.2

3.0

0.4

2.2

67.2

3.4

10376
